Large  Convex  Detection  Mirror
INSTALLATION INSTRUCTIONS

Brackets for 26", 30" and 36" Diameter Mirrors
Also for Larger Rectangular Mirrors.

[Figure 1]


Shown below are various ways large mirrors can be installed using the hardware provided shown above:


FOR SUSPENSION FROM CEILING, OR COUNTER TOP USE:
[Figure A and B]
  1. Attach Base Plate "D" to ceiling or counter top.
  2. Attach Channel "C" to Base Plate "D".
  3. Attach Offset Bracket "B" to Channel "C".
  4. Attach Mirror "A" to Offset Bracket "B" and adjust for height.
  5. Tighten screws on Ball Bracket to fix Mirror in desired position.

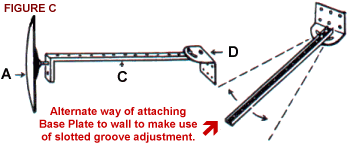

FOR EXTENDED WALL USE:
[Figure C]
  1. Cut end of Channel "C", bend to right angle.
  2. Attach to Base Plate "D".
  3. Attach Mirror "A" directly to Channel "C". Discard Offset Bracket "B".
  4. Tighten screws on Ball Bracket to fix Mirror in desired position.


FOR CLOSE WALL USE:
[Figure D]
  1. Attach Offset Bracket "B" to wall or post.
  2. Attach Mirror "A" to Offset Bracket "B", and adjust angle
  3. Tighten screws on Ball Bracket to fix Mirror in desired position.
  4. Discard Channel "C" and Base Plate "D".


Note: 26", 30" and 36" Outdoor Mirrors require double hardware, which is included.
[Glass Back] [Acrylic Back]


SUGGESTED RETAIL POSITIONING

See All mirrors placed at strategic locations throughout the store can give management a clean view of out-of-the-way areas that are a temptation to thrives. For results we suggest one mirror for every two aisles.
